OEM-Exhaust Rear Diffuser for Mazda MX-5 NC (2005–2015)

OEM-Exhaust Rear Diffuser for Mazda MX-5 NC2/NC3 (2009–2015)
Lightweight. Precision-fit. Race-inspired.

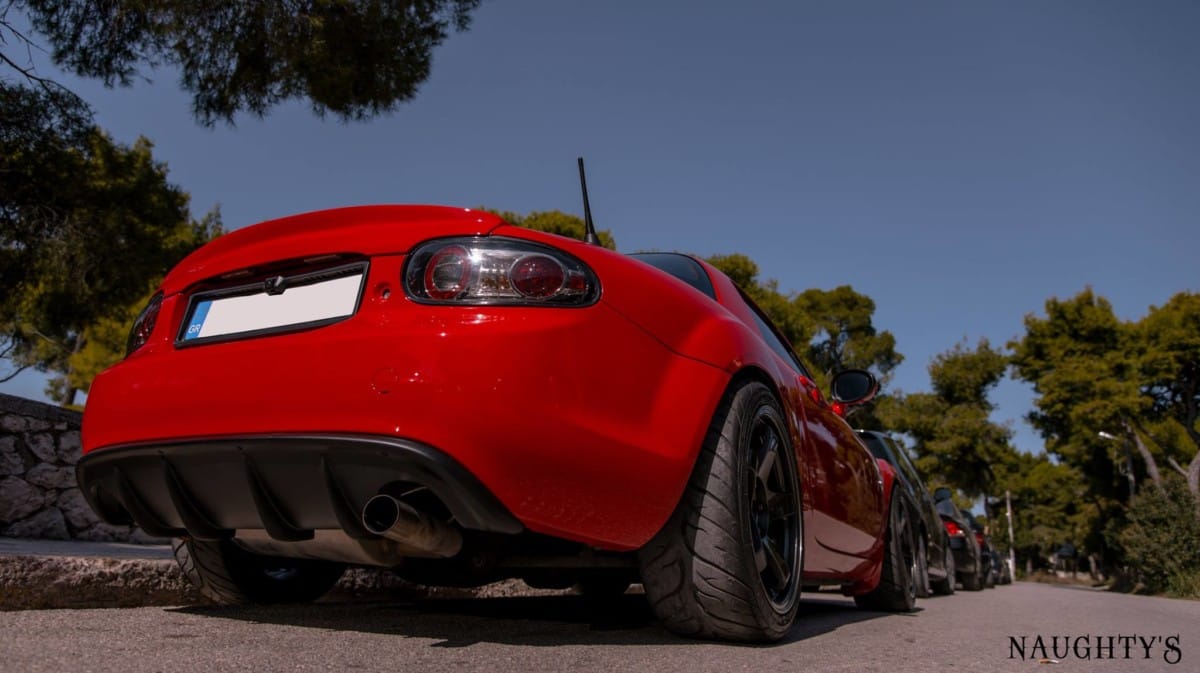

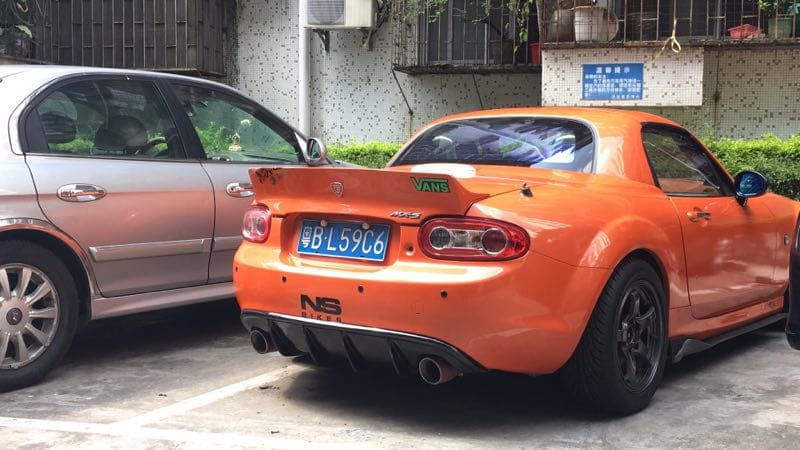

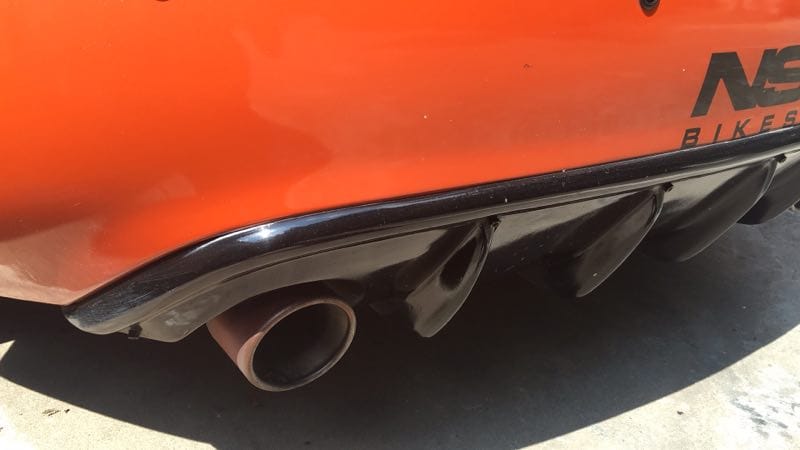

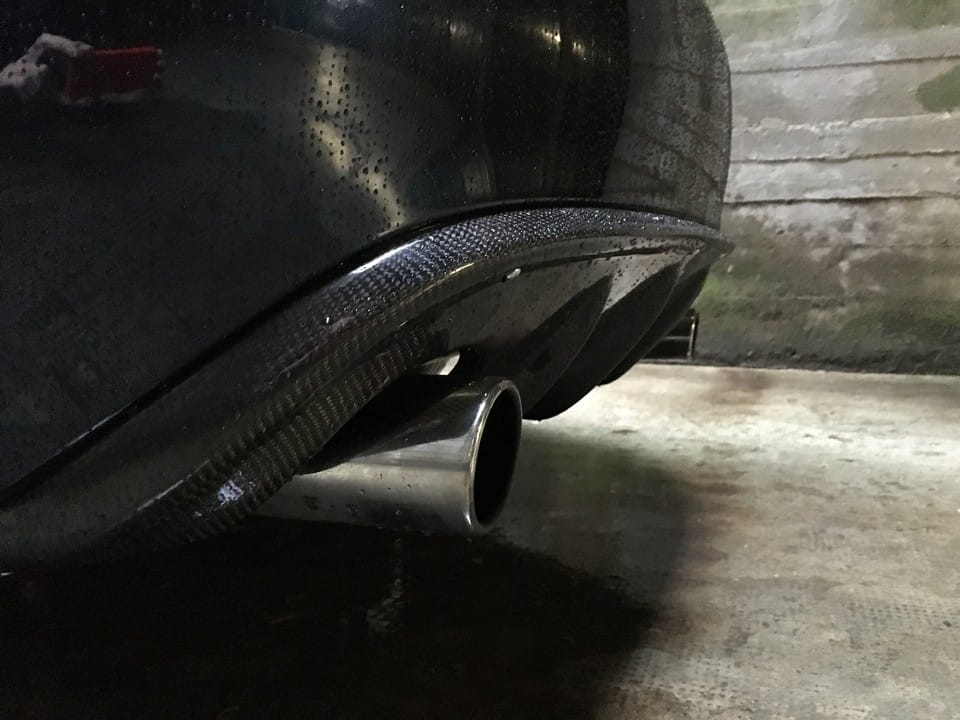

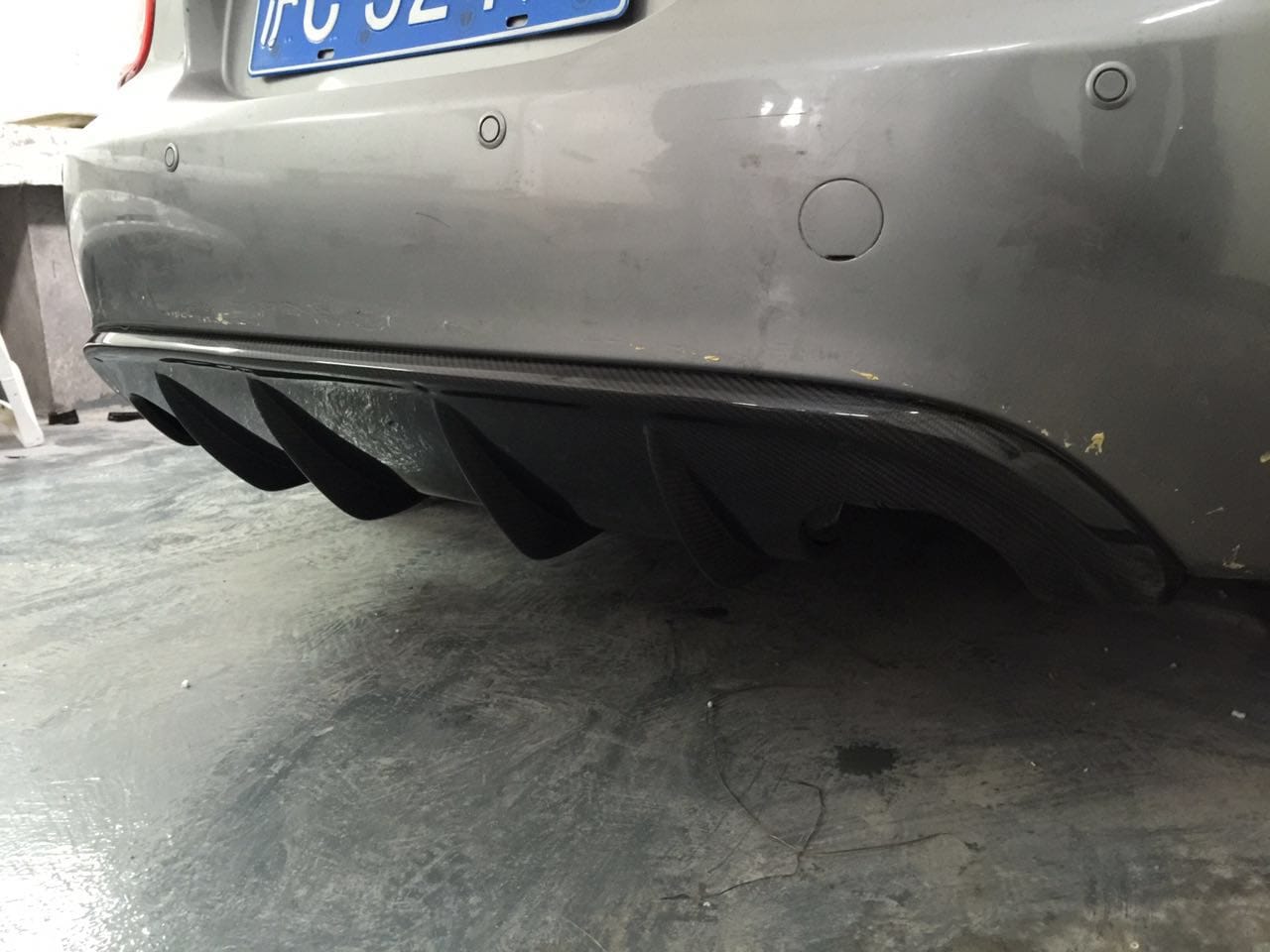

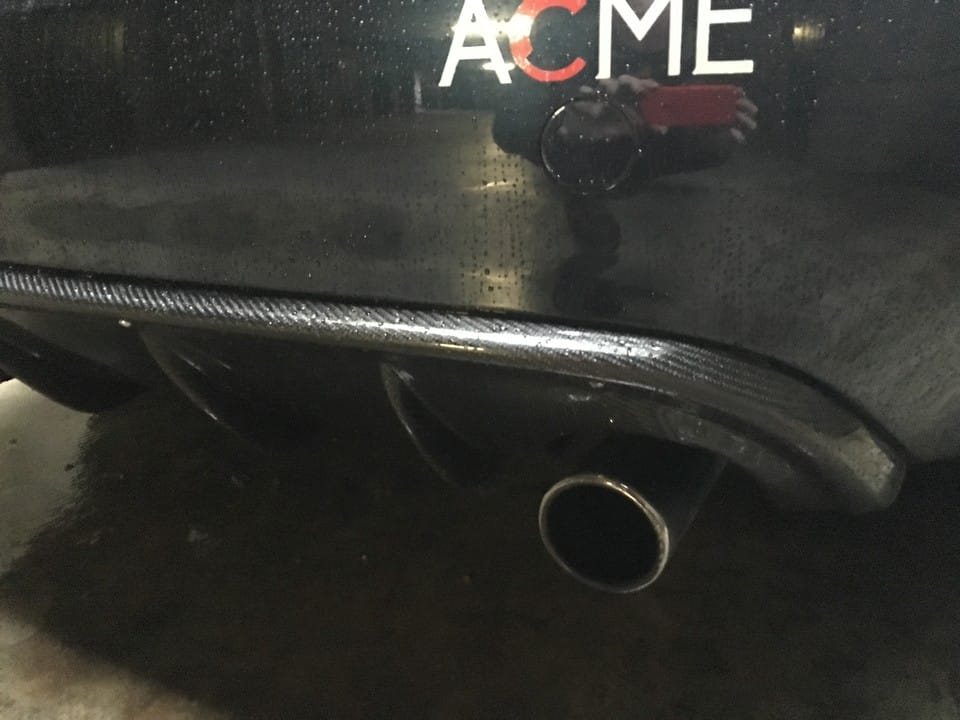

This rear diffuser mounts directly atop the factory rear plastic valence and is designed to work with the OEM exhaust system on all NC2 (2009–2012) and NC3 (2012–2015) Mazda MX-5 models. With a weight of only 1.4 kg in carbon fiber, it adds aggressive styling and improved rear airflow management without compromising the car’s balance or requiring exhaust modifications.=

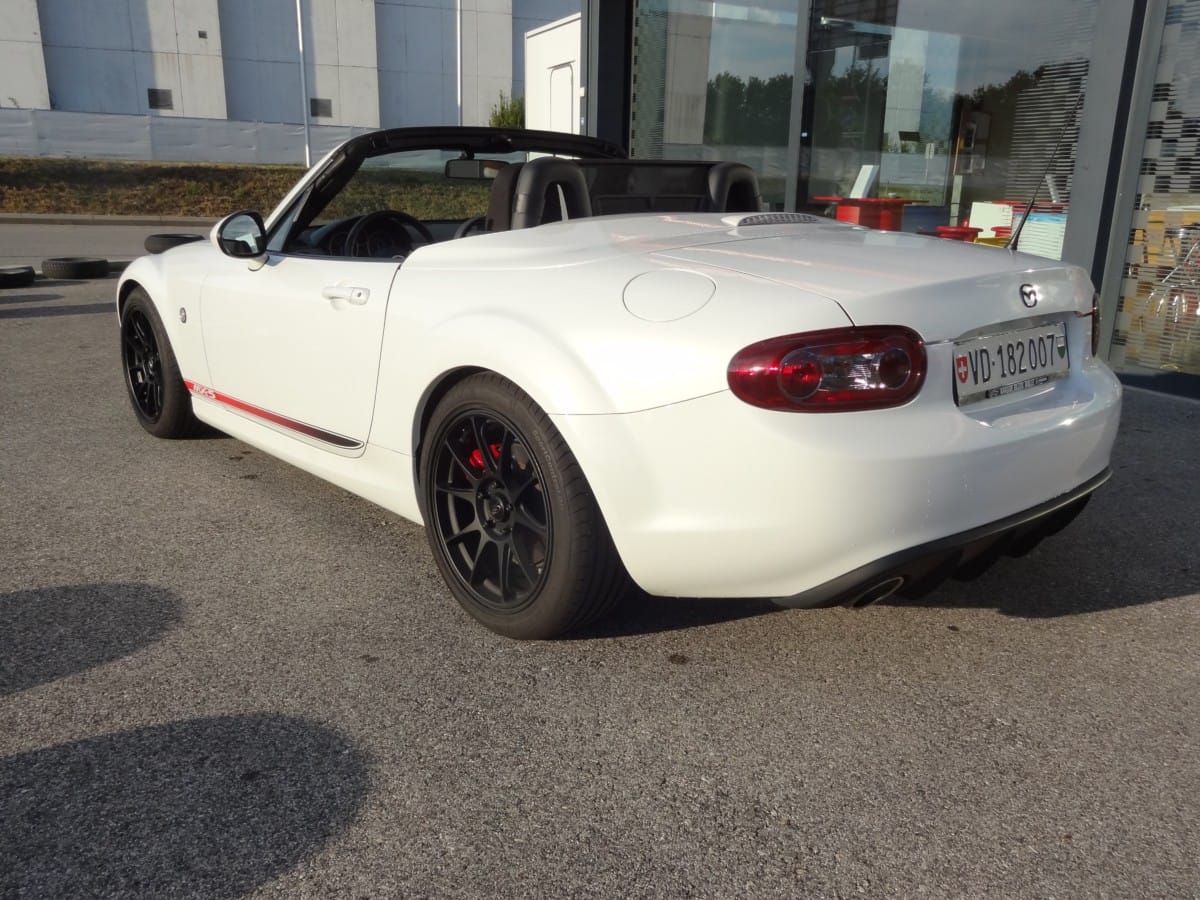

For NC1 (2005–2008) applications: Fitment is possible with minor modifications to the valence or mounting points. A reference installation on an NC1 (white car) is provided for guidance, though this is considered a custom fit and not recommended for those seeking a fully OEM-compatible solution.

Key Features
– OEM exhaust compatible: No relocation or trimming of factory exhaust tips required
– Direct surface-mount design: Installs over the existing rear valence
– Ultra-lightweight construction: 1.4 kg in carbon fiber variants
– Handcrafted to order with rigorous quality control

Material Options
Fiberglass (FRP): Durable, cost-effective, and ready for custom paint.
Carbon Fiber (CF): 3K twill (1×1 weave, Made in Japan), built using a vacuum-bag process with 240g + 450g carbon layers.
Carbon Kevlar (CK): Hybrid construction for increased impact resistance and distinctive visual character.

Technical Specifications
– Weave orientation: 45-degree bias for optimal torsional stiffness
– Finish: Anti-UV gloss clear coat for long-term gloss retention and protection against environmental degradation
– Production time: 25–35 days

Designed for enthusiasts who demand authenticity, performance, and clean integration — this diffuser sharpens the NC’s rear profile while delivering measurable functional gains.
